Dongstar® - China H20 Timber Beam Supplier
“Strong. Lightweight. Reliable for Every Concrete Formwork Project.”

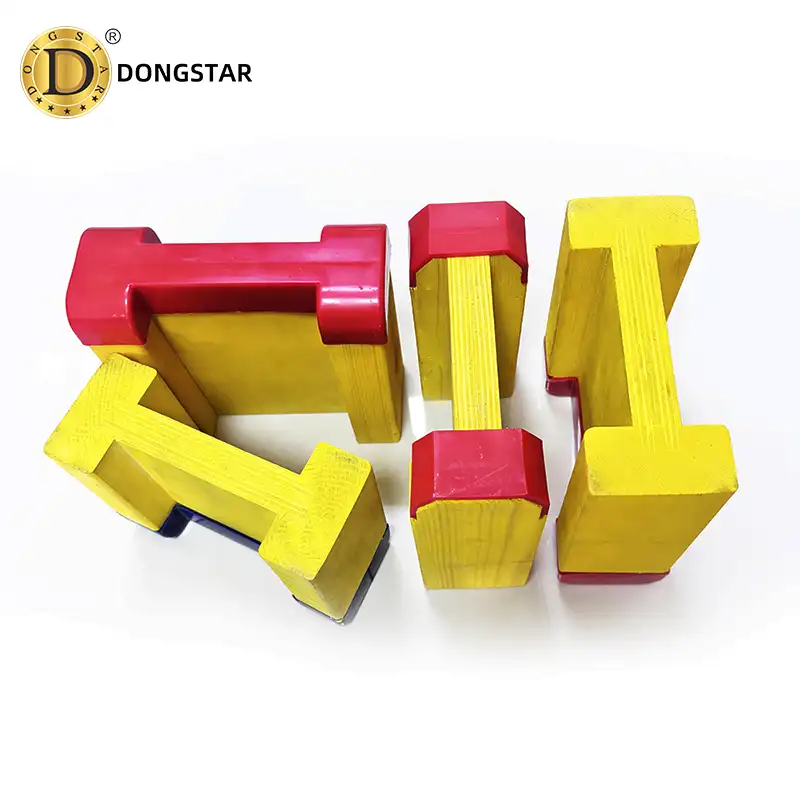

H20 Timber Beams
| H20 Size | Depth 200mm,width 80mm |
| vailable length (M) | 0.8 – 6.2m |
| Flange | North Europe solid wood spruce ,width 80mm thickness 40mm |
| Web | LVL Ply 27mm * 150mm |
| Glue | WBP glue |
| Weight | 4.5 kg/m |
| Moisture Content | 12% ex workshop |
| Package | Pallet , 105 pcs / pallet |
H20 Beam Features
High Strength Timber Flanges
Premium selected solid wood ensures outstanding structural performance.
Waterproof Surface Coating
Protects against moisture, weather and concrete contamination.
Stable Plywood Web
Multi-layer plywood core improves dimensional stability and prevents deformation.
Smooth Edge Protection
Special sealing treatment minimizes moisture penetration.
Multiple Reuse
Designed for repeated use in demanding construction environments.
Easy Identification
Color-coated ends are available for production batch tracking and quality management.

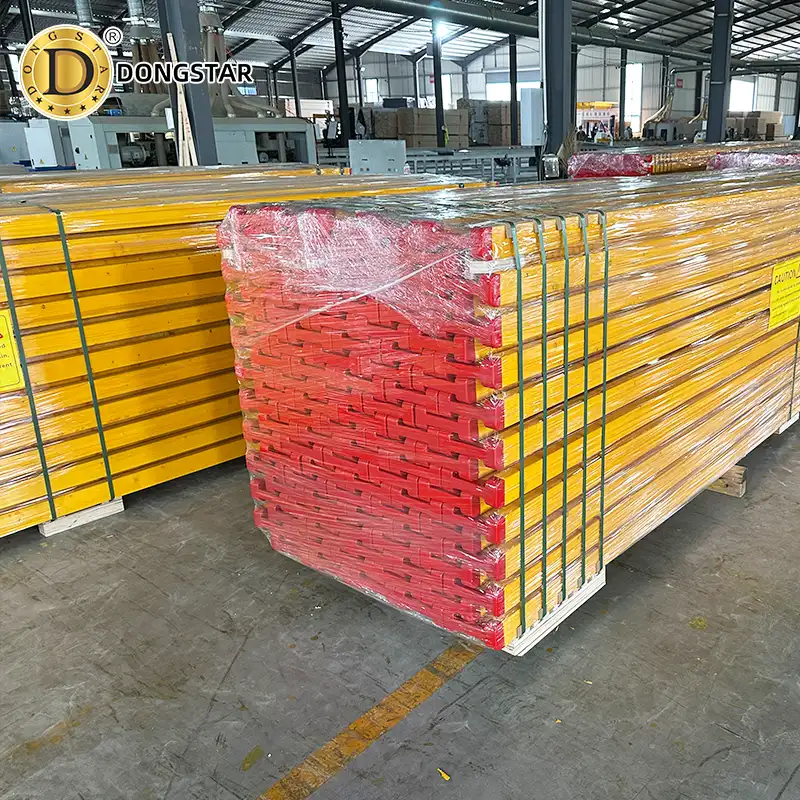

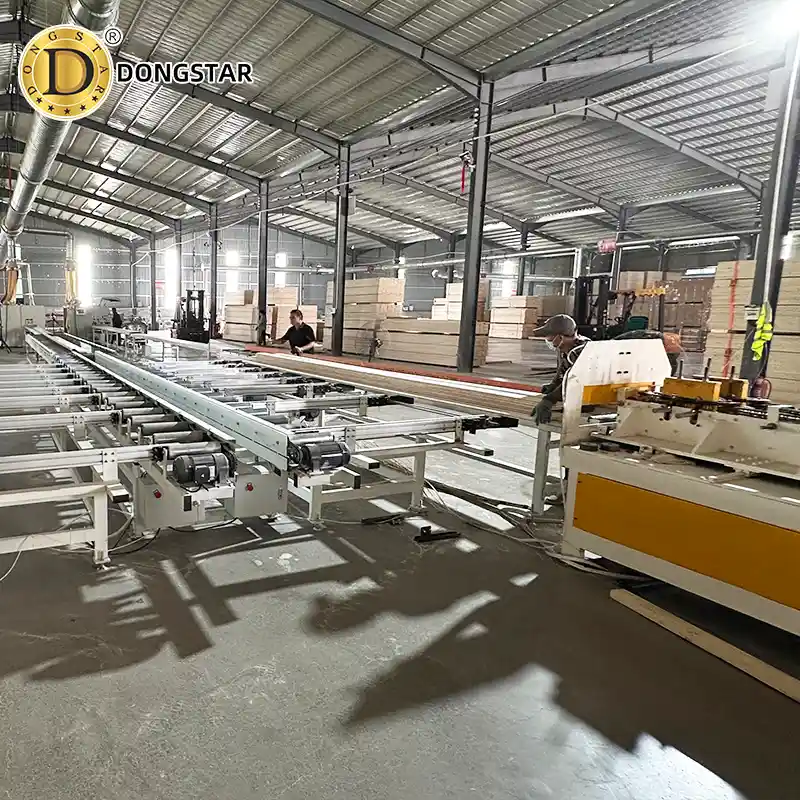

H20 Timber Beam Factory - Dongstar® - China Formwork Plywood Manufacturer
Dongstar H20 Timber Beams, also known as Timber Formwork Beams, H20 Formwork Beams, and Wooden Formwork Beams, are engineered structural beams designed for modern concrete formwork systems.
Manufactured with premium solid timber flanges and a high-strength plywood web, our beams provide excellent load-bearing capacity, dimensional stability, and long service life under demanding construction conditions.
Widely used in residential, commercial, industrial, bridge, tunnel, and infrastructure projects, Dongstar H20 beams deliver consistent performance while reducing labor costs through repeated reuse.
With strict quality control and international production standards, Dongstar supplies reliable H20 Timber Beams to contractors, distributors, wholesalers, and construction companies across Europe, North America, Australia, the Middle East, and other developed markets.
Why Choose Dongstar H20 Timber Beams
Engineered for Heavy Construction
Designed specifically for concrete formwork systems with excellent structural strength and minimal deflection.
Lightweight Yet Strong
Easy to transport, install and dismantle, helping reduce labor costs and improve jobsite efficiency.
Long Service Life
High-quality waterproof coating protects against moisture, abrasion and concrete adhesion, allowing multiple reuse cycles.
Consistent Dimensions
Every beam is precision manufactured to ensure compatibility with international formwork systems.
Excellent Load Capacity
High bending strength and excellent rigidity provide safe support for slabs, walls, columns and bridge construction.
Factory Direct Supply
As a professional manufacturer, Dongstar provides competitive pricing, stable quality and fast delivery for bulk orders.

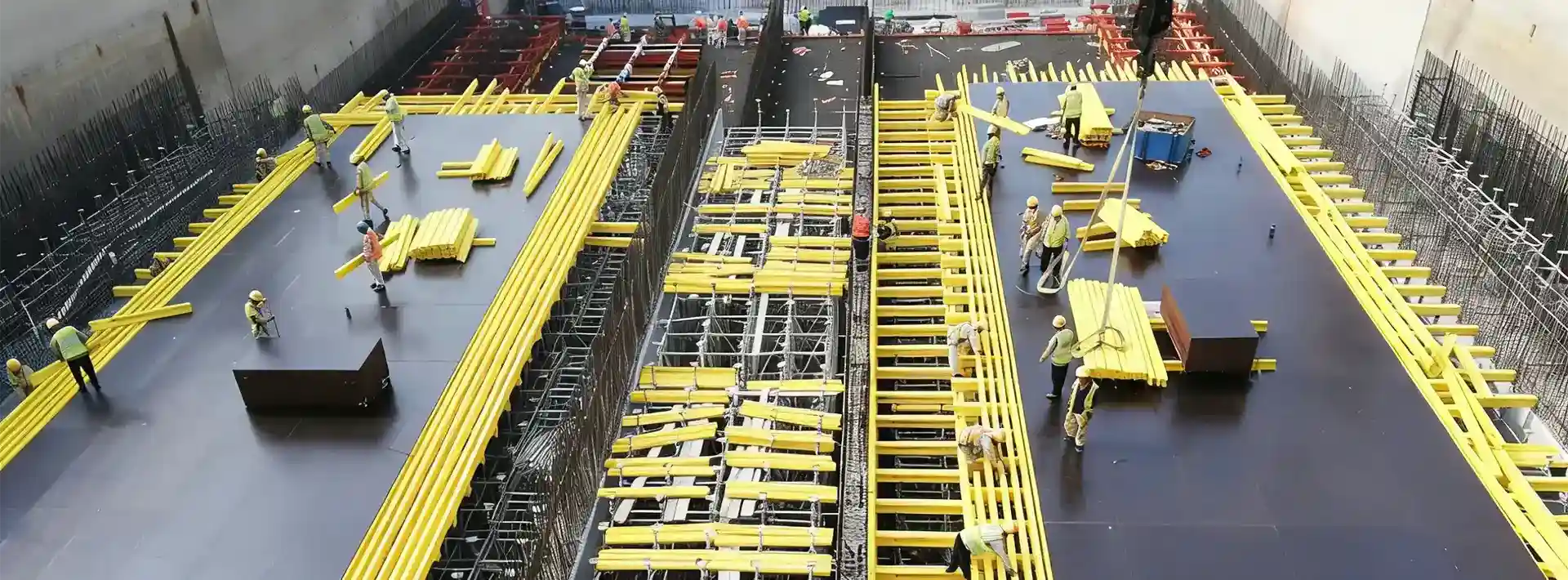

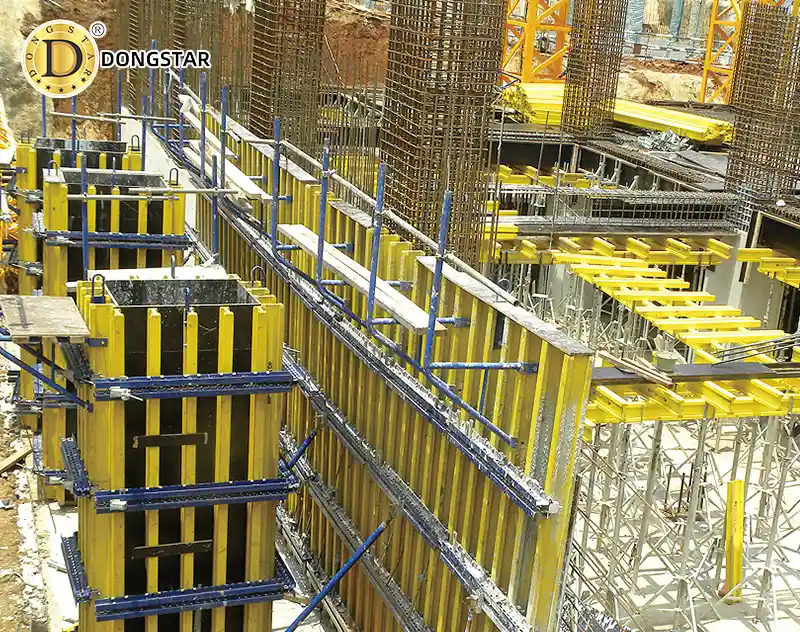

Applications
Dongstar H20 Timber Beams are widely used in:
- Concrete Slab Formwork
- Wall Formwork
- Column Formwork
- Bridge Construction
- Tunnel Engineering
- High-rise Buildings
- Industrial Plants
- Commercial Buildings
- Infrastructure Projects
- Civil Engineering
- Modular Formwork Systems
FAQ
1. Why choose H20 Timber Beams instead of solid wood beams?
Compared with traditional solid timber beams, H20 Timber Beams offer:
- Higher load capacity
- Better dimensional stability
- Lower weight
- Longer service life
- More reuse cycles
- Better resistance to bending and cracking
- Improved construction efficiency
2. What materials are used in Dongstar H20 Timber Beams?
Dongstar H20 Timber Beams are manufactured using:
- Premium Spruce or Pine flanges
- Waterproof plywood web
- Phenolic resin adhesive
- Waterproof protective coating
- Reinforced end caps
Every component is selected to maximize structural performance and durability.
3. Can you produce customized H20 Timber Beams?
Yes.
Dongstar offers OEM and ODM manufacturing services, including:
- Customized lengths
- End cap colors
- Logo printing
- Packaging design
- Private label production
4. Are your H20 Timber Beams waterproof?
Yes.
Each beam is coated with a waterproof protective layer that helps prevent moisture penetration, concrete adhesion, and surface wear, extending the service life in harsh construction environments.
5. How many times can H20 Timber Beams be reused?
Depending on project conditions and proper handling, Dongstar H20 Timber Beams can typically be reused dozens of times, making them a cost-effective solution for large construction projects.
6. What certifications do your products have?
Available certifications include:
- FSC
- CE
- ISO 9001
- SGS (upon request)
- Third-party inspection reports
7. What is your minimum order quantity?
Samples are available for quality evaluation before placing bulk orders.
MOQ depends on beam specifications and destination.
Trial orders are supported for new distributors and project contractors.
8. How long is the production time?
Typical production lead time:
- Samples: 5–7 days
- Standard orders: 15–25 days
- Customized orders: 20–30 days
